Waste Sorting Facility Sungai Pinang

Empowering Sustainability

Basic Information

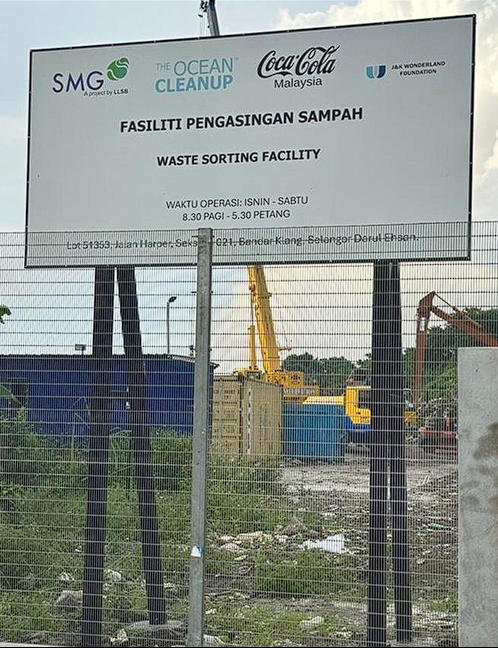

  • Official Name:
    FASILITI PENGASINGAN SAMPAH / WASTE SORTING FACILITY
  • Owned By:
    Landasan Lumayan Sdn Bhd (LLSB)
  • Collaboration:
    The Ocean Clean Up (TOC)
  • Operation Time:
    Monday-Saturday (8:30am-5:30pm)
  • Main Sponsor:
    The Coca Cola Company (Coca Cola Malaysia)
  • Other Sponsor:
    J & K Wonderland Foundation
  • Address:
    Lot 51353, Jalan Harper, Seksyen 021, Bandar Klang, Selangor Darul Ehsan.
Image Lightbox

Waste Sorting Facility

  • A waste sorting facility – designed to separate and classify collected waste into different categories, such as recyclable materials, organic waste, and non-recyclables.
  • The main goal – to maximize the recovery of valuable materials—particularly items that can be recycled or reused—while minimizing the amount of waste that ends up in landfills.
  • The recyclable waste will be sold to designated off-takers.
  • These facilities are a key component in achieving zero waste to landfill targets and promoting a circular economy, where materials are continuously reused, repurposed, or recycled to reduce environmental impact and resource consumption.
  • Embarking into Circular Economy
    • Waste management & segregation
    • Reduce waste to landfill
  • Challenge and Issue
    • 90% organic waste
    • OPEX RM780k/year
    • Discharge of wastewater or waste from 25 industrial areas along the Klang River

Waste Sorting Facility at Sungai Pinang

The waste sorting facility at Sungai Pinang is specifically designed to process waste collected from two key sources:

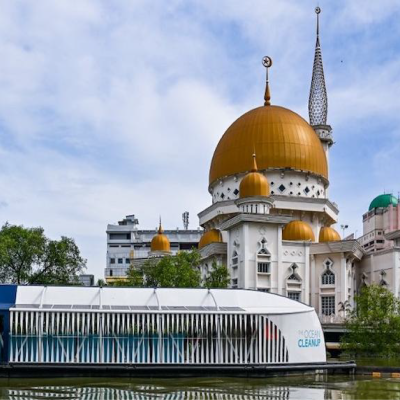

1. Interceptor 002

A mechanical waste collection system that captures river waste before it can flow downstream.

2. Logboom Sg Pinang

A floating barrier in the river that traps floating debris and waste.

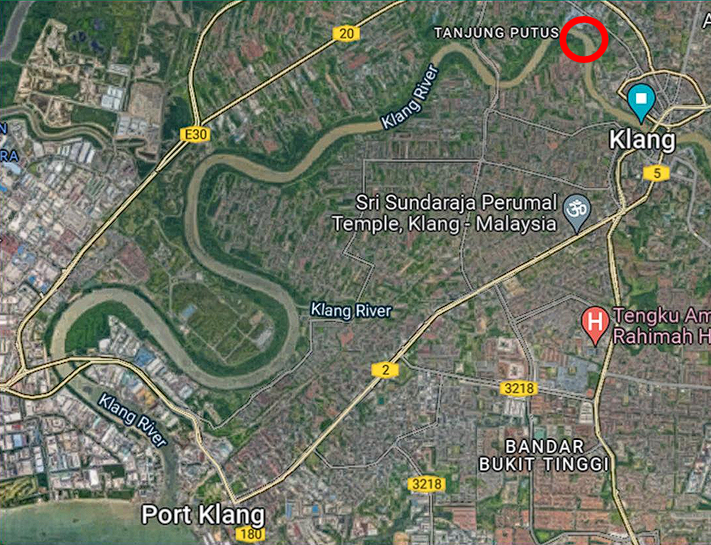

Location

  • Name: Sorting Facility Sungai Pinang, Klang​
  • Address: Lot 51353, Jalan Harper, Bandar Klang, Seksyen 021, Klang, Selangor, Malaysia
  • Coordinate: 3°03’21″N, 101°26’23″E
  • Area: 2527 m2
  • Waste Collected from:
    1. Offloading Jetty Interceptor 002
    2. Log Boom Sungai Pinang
  • Distance from landfill: 34km (Jeram Landfill)
Image Lightbox

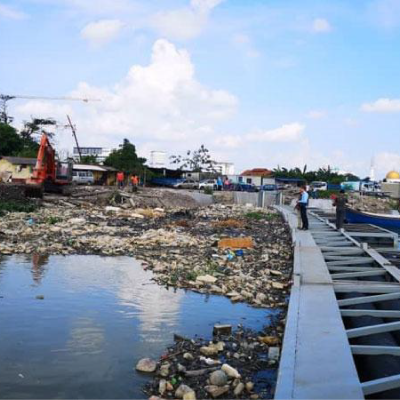

Before The Development Of Waste Sorting Facility

Waste Material Flow Before The Development Of Waste Sorting Facility

Waste Management Flow - Custom 2
1 COLLECTION 2 UNLOADING 3 TRANSPORTED 4 DISPOSAL
Collection Collection
  • Log Boom Sungai Pinang
  • Interceptor 002
  • Floating waste collected from Log Boom & Ocean Interceptor
 Unloading Unloading
  • Waste in Log Boom excavated by Excavator
  • Waste from Interceptor collected simultaneously
 Transported Transported
  • Waste collected at Sungai Pinang site
  • Transported by RORO truck to landfill
 Disposal
  • Jeram Landfill
  • No. 7, Jalan 7, Taman Seri Dua Belas,
    42200 Kapar, Selangor
  • Waste from Loading Site disposed at Jeram Landfill

The Development Of Waste Sorting Facility

Construction Completion: September 2024
Start in trial operation: December 2024

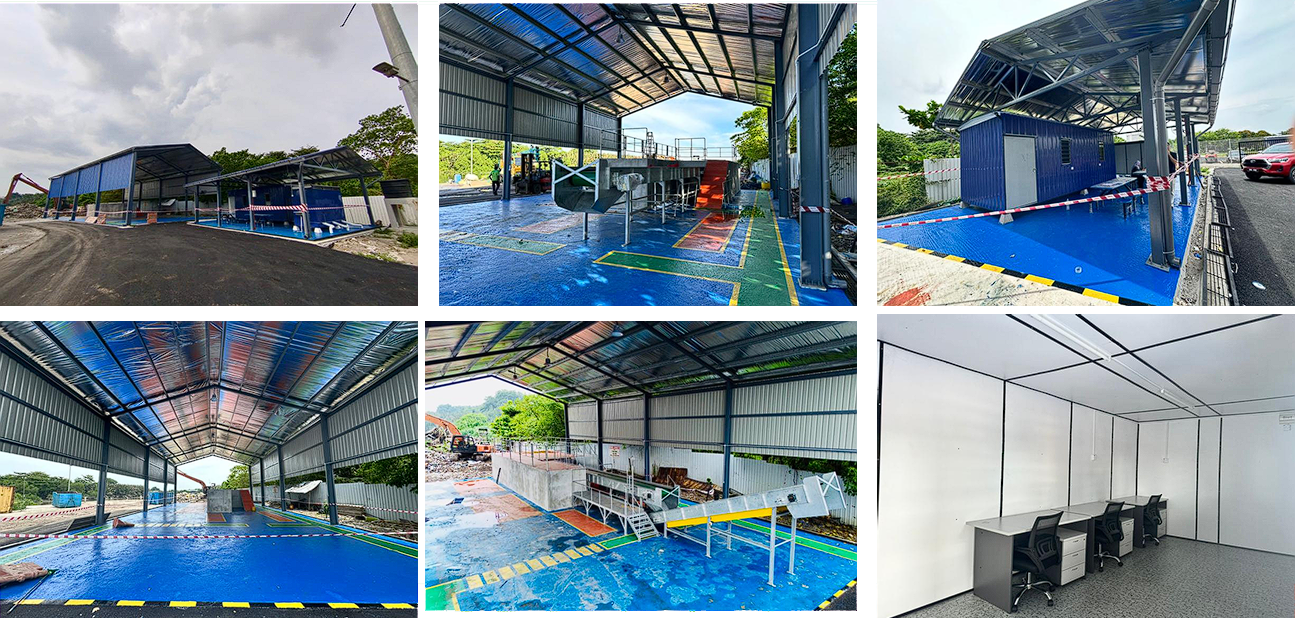

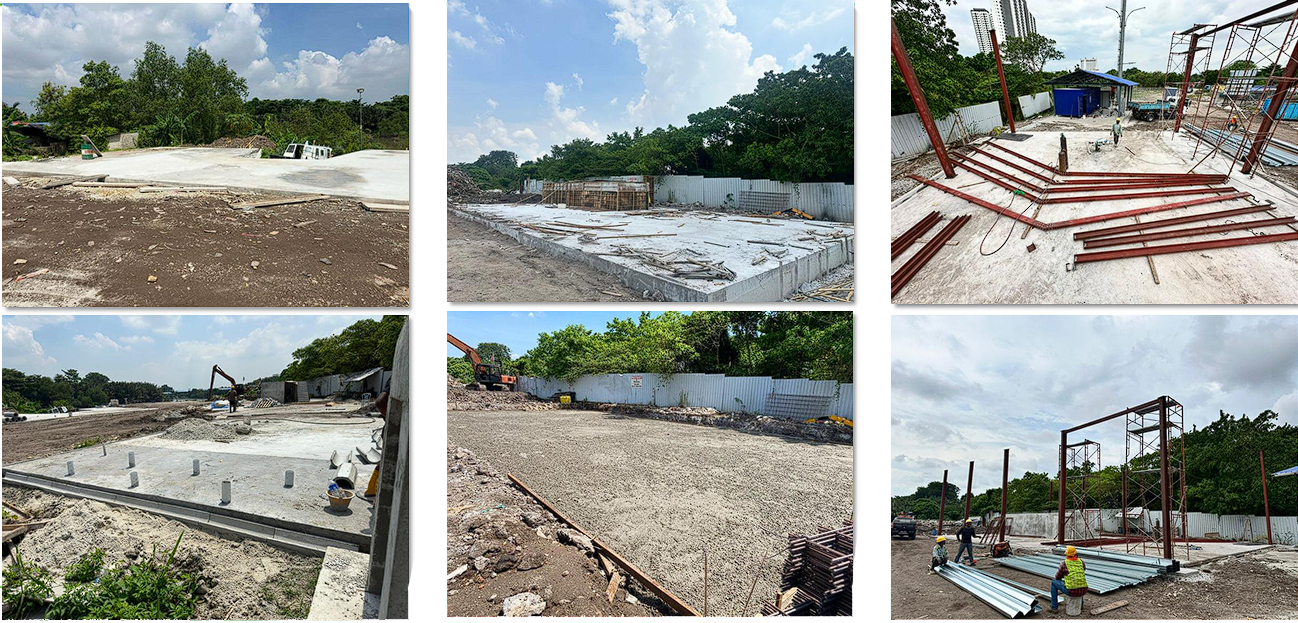

Construction Work

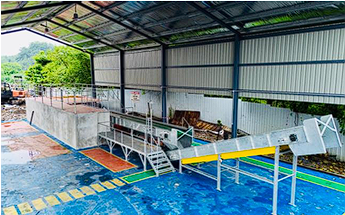

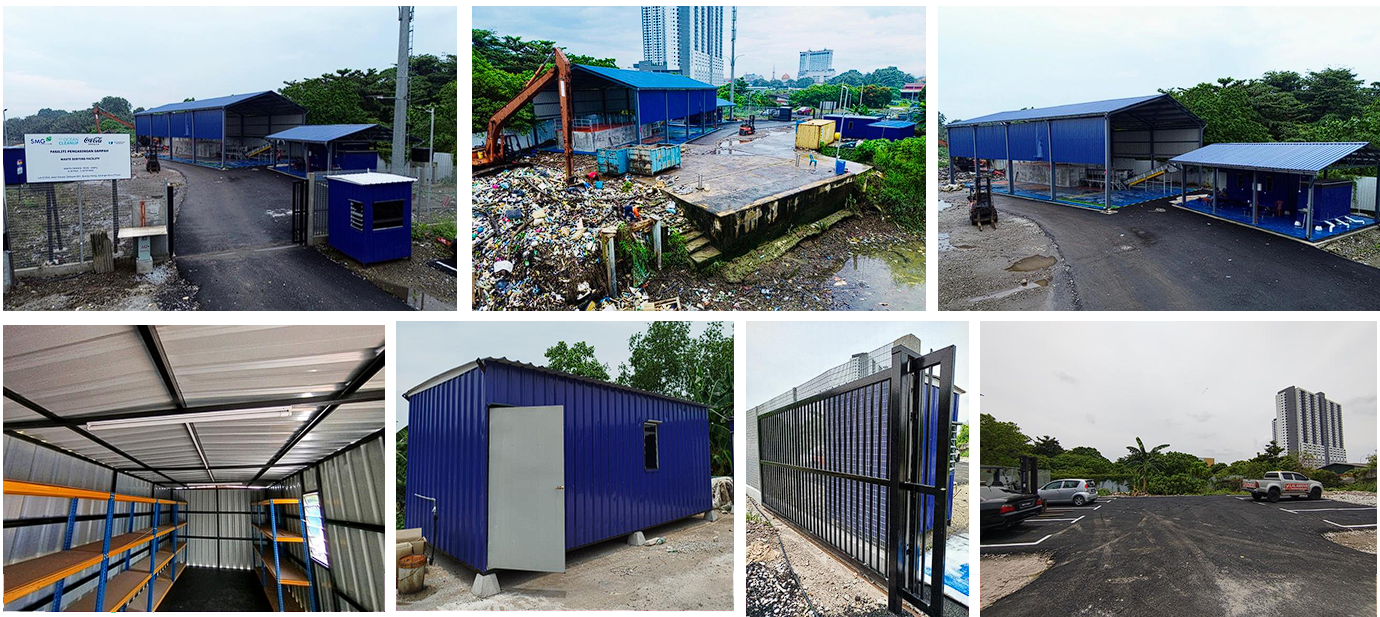

Waste Sorting Facility

Sorting Facility Aerial View

Waste Sorting Facility Operations Overview

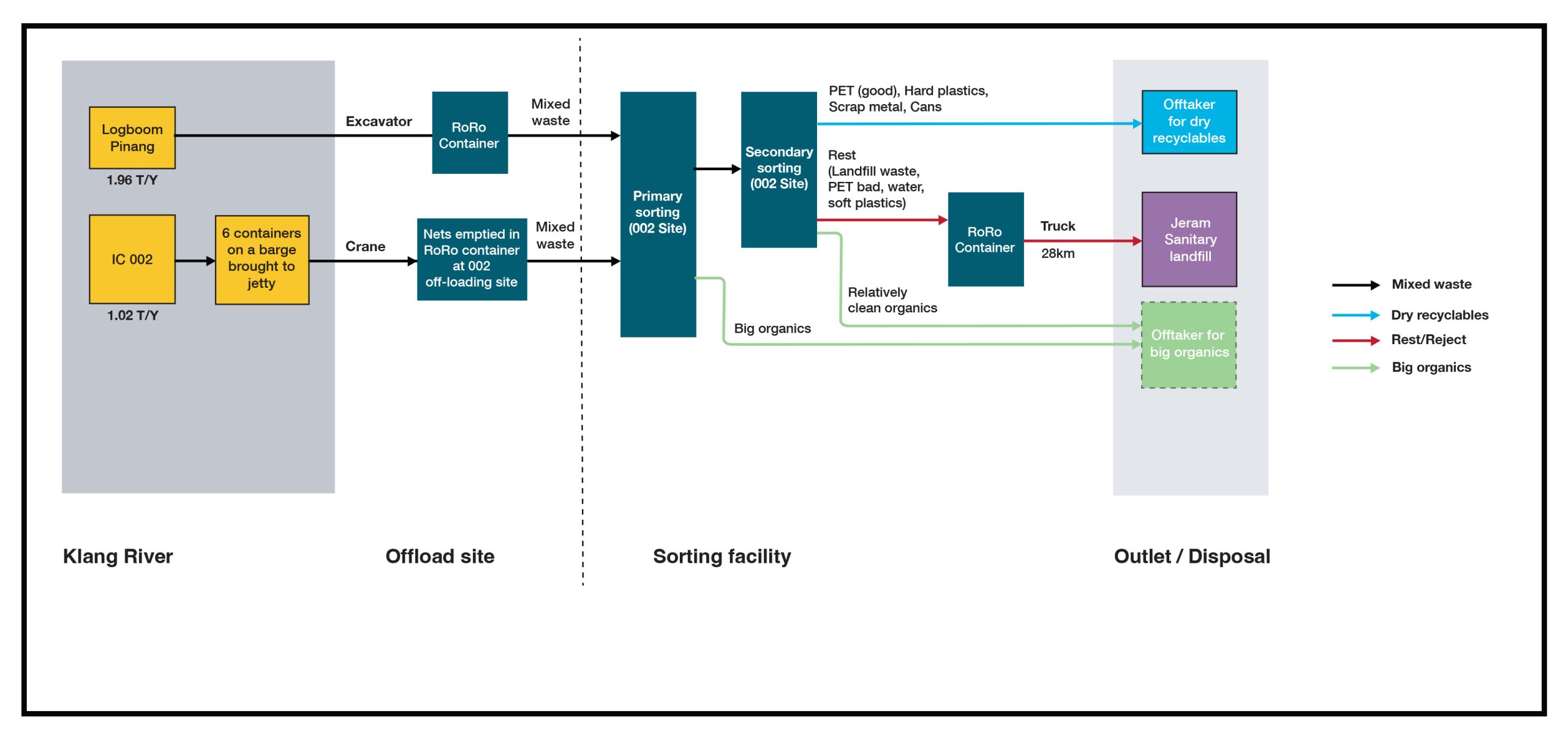

Waste Material Flow at Waste Sorting Facility

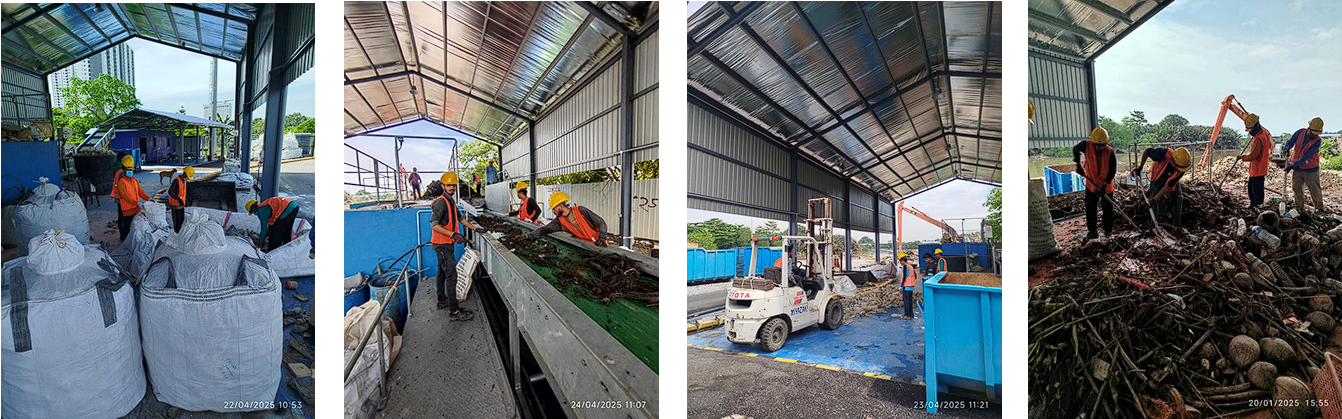

Waste Sorting Facility Daily Operation

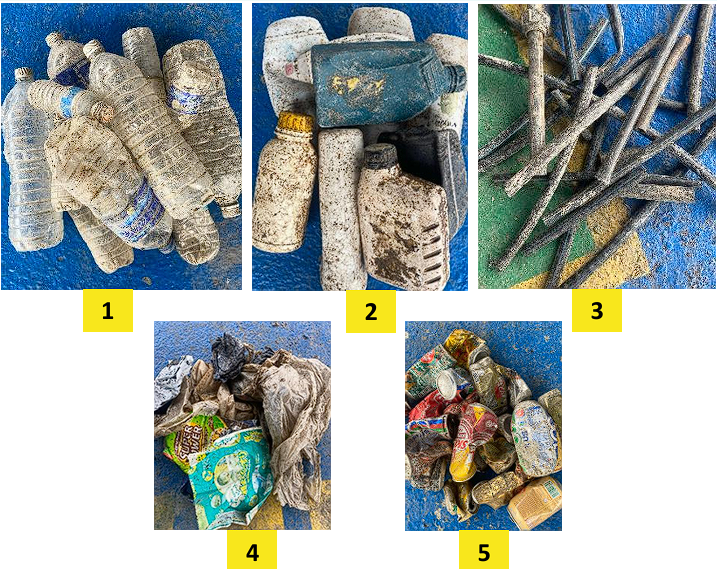

Types of Recyclable Waste – Sell to Offtakers

Types of Waste - Custom 3
TYPES OF WASTE
1 PET (Polyethylene Terephthalate)
Eg: Beverage bottles, containers, and food packaging.
2 HDPE (High-Density Polyethylene), PP (Polypropylene)
Eg: Milk jugs, oil and detergent bottles.
3 PVC (Polyvinyl Chloride)
Eg: Pipes, flooring, and some packaging materials.
4 LDPE (Low-Density Polyethylene)
Eg: Grocery bags, shrink wraps, and some food containers.
5 Aluminium
